| 規格 Specification | |
| 系統 System | |
| 處理器 Processor | Intel® Bay Trail Celeron® J1900 processor (2.00 GHz) |
| 內存 Memory | 1 x DDR3L 1333/1600 SO-DIMM slot, up to 8GB |
| 存儲 Storage | 1 x M.2 2242 (support SSD only)/1 x mSATA |
| 圖形 Graphics | Intel® HD Graphics for Intel® Atom® Processor Z3700 Series |
| 操作系統 OS | Windows 7/8.1/10, Linux |
| 看門狗定時器 Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
| 觸摸屏 Touchscreen | |
| 觸摸屏 Touch Type | 全平面五線電阻屏 5-Wire Resistive Touch |
| 觸擊 Touch | 35,000,000 times |
| 顯示屏 Display | |
| 尺寸 Size | 10.4 inches |
| 分辨率 Resolution | 1024(H) x 768(V) |
| 屏幕寬高比 Ratio | 4:3 |
| 亮度 Brightness | 450 nits |
| 可視區 Active Area | 210.432(H) x 157.824(V)mm |
| LCD尺寸 Dimension | 230 (W) x 175.8 (H) x 5.7 (D)mm |
| 可視角 Viewing Angle | 80°(T)/80°(B)80°(L)/80°(R) |
| 對比度 Contrast Ratio | 1200 |
| 色深 Display Color | 16.7M/262K |
| 像素 Pixel Pitch | 0.2055(H) x 0.2055(V) |
| 背光 Backlight | LED Backlight |
| 背光壽命 Backlight Lifetime | 50000Hrs |
| 功耗 Power Consumption | 4.755W |
| 機構 Mechanical | |
| 前框 Front Panel | 鋁 Aluminum |
| 鋁擠 Heat-Sink | 鋁 Aluminum |
| 底板 Rear Cover | 鐵 SECC |
| 安裝方式 Mounting | Panel Mount, Wall and VESA-mount (75 x 75mm) |
| 尺寸 Dimension | 272.9(W) x 217.9(H) x 60(D)mm |
| 建議開孔尺寸 Cut Out | 264.9 x 209.9mm |
| 重量 Weight | 2.6kg |

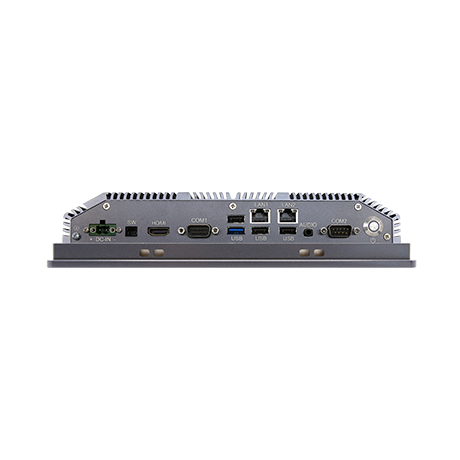

| 外部接口 External I/O | |
| 串口 COM | 2 x RS232/RS422/RS485(COM1~2) |
| USB | 3 x USB 2.0, 1 x USB 3.0 |
| 網口 Ethernet | 2 x Intel® I211AT GbE (10/100/1000 Mbps) |
| 顯示 Video | 1 x HDMI (up to 1920 x 1200) |
| 音頻 Audio | 1 x Audio (Line-out & Mic-in 2 in 1) |
| 遠程開關 Remote ON-OFF | 1 x Remote ON-OFF |
| 電源輸入 Power Input | 1 x Power Connector (2P Phoenix) |
| 內部接口 Internal I/O | |
| 擴展接口 Expansion | 1 x full-size Mini-PCIe Slot (Co-Lay with M.2_SSD) 1 x M.2_SSD Slot(1 x SSD only) 1 x M.2_WIFI Slot (WIFI only) 1 x SIM Card Slot |
| 電源 Power | |
| 電源輸入 Power Input | 9~36V DC |
| 環境 Environment | |
| 操作溫度 Operation Temp. | -10℃ ~ 60℃ (SSD) |
| 存儲溫度 Storage Temp. | -40℃ ~ 70℃ |
| 濕度 Relative Humidity | 5% ~ 95%, 非凝結狀態 Non-condensing |
| 隨機振動 Random Vibration | 5~500Hz, 2Grms (SSD)operation |
| 正弦振動 Sine Vibration | 5~500Hz, 2G Non-operation |
| 機械沖擊 Shock | 10g 11ms operation, 30g 11ms Non-operation |
| 認證 Certification | |
| 安規認證 Safety Certification | CCC, CE, FCC |
