| 規格 Specification | ||
| 系統 System | ||
| 處理器 Processor | Intel® Bay Trail Celeron® J1900 processor (2.00 GHz) | |
| 內存 Memory | 1 x DDR3L 1333/1600 SO-DIMM slot, up to 8GB | |
| 存儲 Storage | 1 x mSATA | |
| 圖形 Graphics | Intel® HD Graphics for Intel® Atom® Processor Z3700 Series | |
| 操作系統 OS | Windows 7/8.1/10, Linux | |
| 看門狗定時器 Watchdog Timer | Programmable 255 levels timer interval，from 1~255 sec/min | |
| 觸摸屏 Touchscreen | ||
| 觸摸屏 Touch Type | 全平面五線電阻屏 5-Wire Resistive Touch | |
| 觸擊 Touch | 35,000,000 times | |
| 顯示屏 Display | ||
| 尺寸 Size | 12.1 inches | |
| 分辨率 Resolution | 1024(H) x 768(V) | |
| 屏幕寬高比 Ratio | 4:3 | |
| 亮度 Brightness | 450 nits | |
| 可視區 Active Area | 245.76(H) x 184.32(V)mm | |
| LCD尺寸 Dimension | 279.0(W) x 209.0(H) x 8.6(D)mm | |
| 可視角 Viewing Angle | 80°(R)/80°(L) 80°(U)/80°(D) | |
| 對比度 Contrast Ratio | 700 | |
| 色深 Display Color | 16.2M/262K | |
| 像素 Pixel Pitch | 0.240(H) x 0.240(V) | |
| 背光 Backlight | LED Backlight | |
| 背光壽命 Backlight Lifetime | 50000Hrs | |
| 功耗 Power Consumption | 6.4W | |
| 機構 Mechanical | ||
| 前框 Front Panel | 鋁 Aluminum | |
| 鋁擠 Heat-Sink | 鋁 Aluminum | |
| 底板 Rear Cover | 鐵 SECC | |
| 安裝方式 Mounting | Panel Mount, Wall and VESA-mount (75 x 75mm) | |
| 尺寸 Dimension | 307(W) x 241.6(H) x 60(D)mm | |
| 建議開孔尺寸 Cut Out | 299 x 233.6mm | |
| 重量 Weight | 2.9kg | |

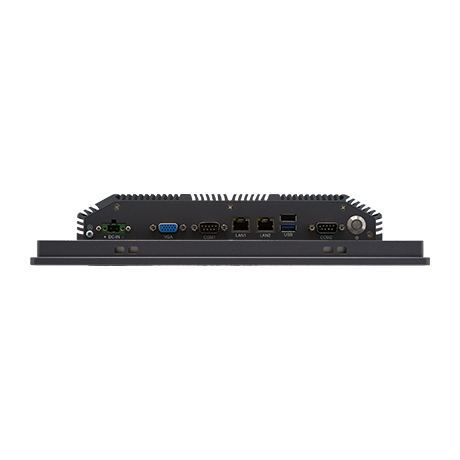

| 外部接口 External I/O | ||
| 串口 COM | 2 x RS232 (COM1~2) | |
| USB | 1 x USB 2.0, 1 x USB 3.0 | |
| 網口 Ethernet | 2 x Realtek® 8111F GbE (10/100/1000 Mbps) | |
| 顯示 Video | 1 x VGA (up to 2560 x 1600) | |
| 電源輸入 Power Input | 1 x Power Connector (2P Phoenix) | |
| 內部接口 Internal I/O | ||
| 擴展接口 Expansion | 1 x Full-size Mini-PCIe Slot (1 x Wifi/3G) 1 x SIM Card Slot | |
| 電源 Power | ||
| 電源輸入 Power Input | 12V DC | |
| 適配器 Adapter | AC-DC, 12V@5A, 60W | |
| 環境 Environment | ||
| 操作溫度 Operation Temp. | -10℃ ~ 60℃ (SSD) | |
| 存儲溫度 Storage Temp. | -40℃ ~ 70℃ | |
| 濕度 Relative Humidity | 5% ~ 95%, 非凝結狀態 Non-condensing | |
| 隨機振動 Random Vibration | 5~500Hz, 2Grms (SSD)operation | |
| 正弦振動 Sine Vibration | 5~500Hz, 2G Non-operation | |
| 機械沖擊 Shock | 10g 11ms operation, 30g 11ms Non-operation | |
| 認證 Certification | ||
| 安規認證 Safety Certification | CCC | |
