規格 Specification | ||
系統 System | ||
處理器 Processor | Intel® Bay Trail Celeron® J1900 processor (2.00 GHz) | |
內存 Memory | 1 x DDR3L 1333/1600 SO-DIMM slot, up to 8GB | |
存儲 Storage | 1 x 2.5" Drive Bay for SATA HDD/SSD 1 x M.2 2242 (support SSD only)/1 x mSATA | |
圖形 Graphics | Intel® HD Graphics for Intel® Atom® Processor Z3700 Series | |
操作系統 OS | Windows 7/8.1/10, Linux | |
看門狗定時器 Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min | |
觸摸屏 Touchscreen | ||
觸摸屏 Touch Type | 全平面五線電阻屏 5-Wire Resistive Touch | |
觸擊 Touch | 35,000,000 times | |

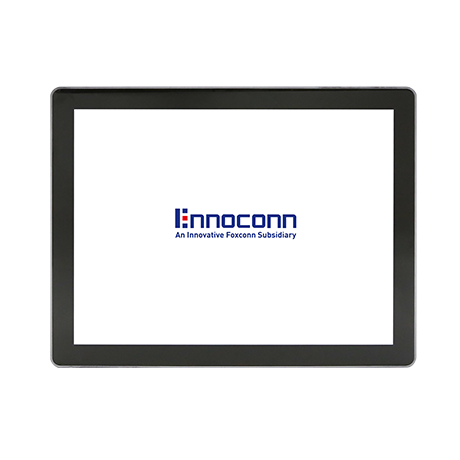

顯示屏 Display | ||
尺寸 Size | 15 inches | |
分辨率 Resolution | 1024(H) x 768(V) | |
屏幕寬高比 Ratio | 4:3 | |
亮度 Brightness | 300 nits | |
可視區 Active Area | 304.128 x 228.096mm | |
LCD尺寸 Dimension | 326.5(W) x 253.5(H) x 11.8(D) | |
可視角 Viewing Angle | 80°(T)/80°(B) 80°(L)/80°(R) | |
對比度 Contrast Ratio | 800 | |
色深 Display Color | 16.2M/262K | |
像素 Pixel Pitch | 0.297(H) x 0.297(V) | |
背光 Backlight | LED Backlight | |
背光壽命 Backlight Lifetime | 30000Hrs | |
功耗 Power Consumption | 7.56W | |
機構 Mechanical | ||
前框 Front Panel | 鋁 Aluminum | |
鋁擠 Heat-Sink | 鋁 Aluminum | |
底板 Rear Cover | 鐵 SECC | |
安裝方式 Mounting | Panel Mount, Wall and VESA-mount (75 x 75mm) | |
尺寸 Dimension | 351.6(W) x 275.6(H) x 68.4(D)mm | |
建議開孔尺寸 Cut Out | 341.4 x 265.4mm | |
重量 Weight | 4.2kg | |

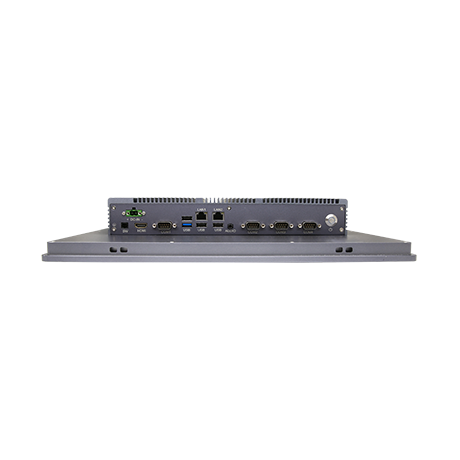

外部接口 External I/O | ||
串口 COM | 2 x RS232/RS422/RS485(COM1~2) 2 x RS232(COM3 & COM4) | |
USB | 3 x USB 2.0, 1 x USB 3.0 | |
網口 Ethernet | 2 x Intel® I211AT GbE (10/100/1000 Mbps) | |
顯示 Video | 1 x HDMI (up to 1920 x 1200) | |
音頻 Audio | 1 x Audio (Line-out & Mic-in 2 in 1) | |
遠程開關 Remote ON-OFF | 1 x Remote ON-OFF | |
電源輸入 Power Input | 1 x Power Connector (2P Phoenix) | |
內部接口 Internal I/O | ||
擴展接口 Expansion | 1 x full-size Mini-PCIe Slot (Co-Lay with M.2_SSD) 1 x M.2_SSD Slot (1 x SSD only) 1 x M.2_Wifi Slot (Wifi only) 1 x SIM Card Slot | |
電源 Power | ||
電源輸入 Power Input | 9~36V DC | |
環境 Environment | ||
操作溫度 Operation Temp. | -10℃ ~ 60℃ (SSD),0℃ ~ 40℃ (HDD) | |
存儲溫度 Storage Temp. | -40℃ ~ 70℃ | |
濕度 Relative Humidity | 5% ~ 95%, 非凝結狀態 Non-condensing | |
隨機振動 Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD) operation | |
正弦振動 Sine Vibration | 5~500Hz, 2G Non-operation | |
機械沖擊 Shock | 10g 11ms operation, 30g 11ms Non-operation | |
認證 Certification | ||
安規認證 Safety Certification | CCC, CE, FCC |
