| 規格 Specification | ||
| 系統 System | ||
| 處理器 Processor | Intel® Core™ i5-6200U Processor, 2.3GHz (up to 2.8GHz) | |
| 內存 Memory | 1 x DDR4 1866/2133MHz SO-DIMM, Up to 16 GB | |
| 存儲 Storage | 1 x 2.5" Drive Bay for SATA3.0 HDD/SSD 1 x M.2 2242, 1 x mSATA | |
| 圖形 Graphics | Intel® HD Graphics 520 | |
| 操作系統 OS | Windows 7/8.1/10, Linux | |
| 看門狗定時器 Watchdog Timer | Programmable 255 levels timer interval，from 1~255 sec/min | |
| 觸摸屏 Touchscreen | ||
| 觸摸屏 Touch Type | 全平面五線電阻屏 5-Wire Resistive Touch | |
| 觸擊 Touch | 35,000,000 times | |
| 顯示屏 Display | ||
| 尺寸 Size | 15 inches | |
| 分辨率 Resolution | 1024(H) x 768(V) | |
| 屏幕寬高比 Ratio | 4:3 | |
| 亮度 Brightness | 300 nits | |
| 可視區 Active Area | 304.128 x 228.096mm | |
| LCD尺寸 Dimension | 326.5(W) x 253.5(H) x 11.8(D) | |
| 可視角 Viewing Angle | 80°(T)/80°(B) 80°(L)/80°(R) | |
| 對比度 Contrast Ratio | 800 | |
| 色深 Display Color | 16.2M/262K | |
| 像素 Pixel Pitch | 0.297(H) x 0.297(V) | |
| 背光 Backlight | LED Backlight | |
| 背光壽命 Backlight Lifetime | 30000Hrs | |
| 功耗 Power Consumption | 7.56W | |
| 機構 Mechanical | ||
| 前框 Front Panel | 鋁 Aluminum | |
| 鋁擠 Heat-Sink | 鋁 Aluminum | |
| 底板 Rear Cover | 鐵 SECC | |
| 安裝方式 Mounting | Panel Mount, Wall and VESA-mount (75 x 75mm) | |
| 尺寸 Dimension | 351.6(W) x 275.6(H) x 68.4(D)mm | |
| 建議開孔尺寸 Cut Out | 341.4 x 265.4mm | |
| 重量 Weight | 4.2kg | |

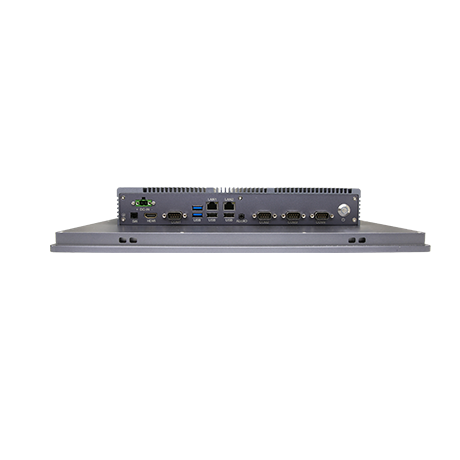

| 外部接口 External I/O | ||
| 串口 COM | 2 x RS232/RS422/RS485(COM1~2) 2 x RS232(COM3 & COM4) | |
| USB | 2 x USB 2.0, 2 x USB 3.0 | |
| 網口 Ethernet | 1 x RJ45 Intel® I211AT (10/100/1000 Mbps) 1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps) | |
| 顯示 Video | 1 x HDMI (up to 4096 x 2160) | |
| 音頻 Audio | 1 x Audio (Line-out & Mic-in 2 in 1) | |
| 遠程開關 Remote ON-OFF | 1 x Remote ON-OFF | |
| 電源輸入 Power Input | 1 x Power Connector (2P Phoenix) | |
| 內部接口 Internal I/O | ||
| 擴展接口 Expansion | 1 x Full-size Mini-PCIe Slot 1 x M.2 2242_SSD Slot 1 x M.2 2230_Wifi Slot (Wifi only) 1 x SIM Card Slot | |
| 電源 Power | ||
| 電源輸入 Power Input | 9~36V DC | |
| 環境 Environment | ||
| 操作溫度 Operation Temp. | -10℃ ~ 50℃ (SSD)，0℃ ~ 40℃ (HDD) | |
| 存儲溫度 Storage Temp. | -40℃ ~ 70℃ | |
| 濕度 Relative Humidity | 5% ~ 95%, 非凝結狀態 Non-condensing | |
| 隨機振動 Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation | |
| 正弦振動 Sine Vibration | 5~500Hz, 2G Non-operation | |
| 機械沖擊 Shock | 10g 11ms operation, 30g 11ms Non-operation | |
| 認證 Certification | ||
| 安規認證 Safety Certification | CCC, CE, FCC | |
| ■ 配置Configuration | ||
| 型號 Model Name | 處理器 CPU | |
| CEP-15RS-610A | Intel® Core™ i3-6100U Processor, 2.3GHz | |
| CEP-15RS-620A | Intel® Core™ i5-6200U Processor, 2.3GHz (up to 2.8GHz) | |
