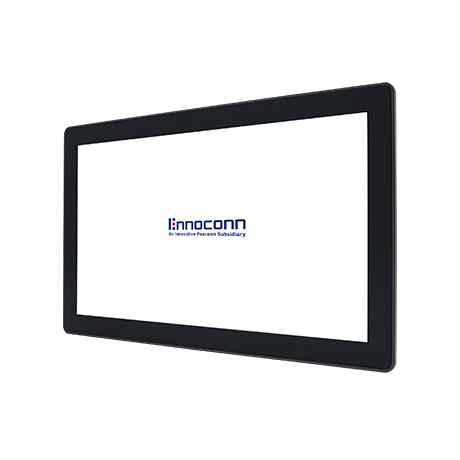

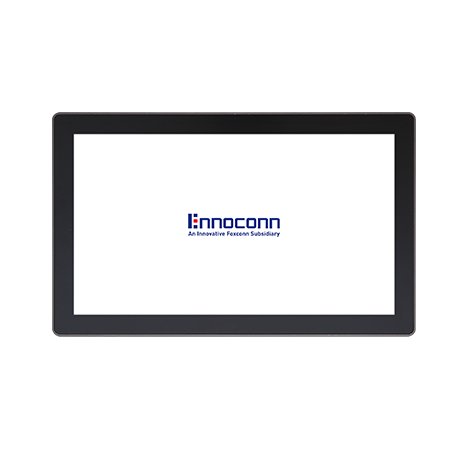

| 規格 Specification | ||
| 系統 System | ||
| 處理器 Processor | Intel® Bay Trail Celeron® J1900 processor (2.00 GHz) | |
| 內存 Memory | 1 x DDR3L 1333/1600 SO-DIMM slot, up to 8GB | |
| 存儲 Storage | 1 x 2.5" Drive Bay for SATA HDD/SSD 1 x M.2 2242 (support SSD only)/1 x mSATA | |
| 圖形 Graphics | Intel® HD Graphics for Intel® Atom® Processor Z3700 Series | |
| 操作系統 OS | Windows 7/8.1/10, Linux | |
| 看門狗定時器 Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min | |
| 觸摸屏 Touchscreen | ||
| 觸摸屏 Touch Type | 10點投射式電容屏 P-cap Multi-Touch | |
| 觸擊 Touch | 35,000,000 times | |
| 顯示屏 Display | ||
| 尺寸 Size | 15.6 inches | |
| 分辨率 Resolution | 1366 x 768 | |
| 屏幕寬高比 Ratio | 16:9 | |
| 亮度 Brightness | 500 nits | |
| 可視區 Active Area | 344.232 x193.536mm | |
| LCD尺寸 Dimension | 363.8(W) x 215.98(H) x 9.3(D)mm | |
| 可視角 Viewing Angle | CR ≥ 10; θx 160(H)/ θy 150° (V) | |
| 對比度 Contrast Ratio | 600 | |
| 色深 Display Color | 16.7M | |
| 像素 Pixel Pitch | 0.252 (H) x 0.252 (V) | |
| 背光 Backlight | LED Backlight | |
| 背光壽命 Backlight Lifetime | 50000Hrs | |
| 功耗 Power Consumption | 12.1W | |
| 機構 Mechanical | ||
| 前框 Front Panel | 鋁 Aluminum | |
| 鋁擠 Heat-Sink | 鋁 Aluminum | |
| 底板 Rear Cover | 鐵 SECC | |
| 安裝方式 Mounting | Panel Mount, Wall and VESA-mount (75 x 75mm) | |
| 尺寸 Dimension | 395 X 245.5 X 66mm | |
| 建議開孔尺寸 Cut Out | 387 x 237.5mm | |
| 重量 Weight | 3.5Kg | |
| 外部接口 External I/O | ||
| 串口 COM | 2 x RS232/RS422/RS485(COM1~2) 2 x RS232(COM3 & COM4) | |
| USB | 3 x USB 2.0, 1 x USB 3.0 | |
| 網口 Ethernet | 2 x Intel® I211AT GbE (10/100/1000 Mbps) | |
| 顯示 Video | 1 x HDMI (up to 1920 x 1200) | |
| 音頻 Audio | 1 x Audio (Line-out & Mic-in 2 in 1) | |
| 遠程開關 Remote ON-OFF | 1 x Remote ON-OFF | |
| 電源輸入 Power Input | 1 x Power Connector (2P Phoenix) | |
| 內部接口 Internal I/O | ||
| 擴展接口 Expansion | 1 x full-size Mini-PCIe Slot (Co-Lay with M.2_SSD) 1 x M.2_SSD Slot(1 x SSD only) 1 x M.2_Wifi Slot (Wifi only) 1 x SIM Card Slot | |
| 電源 Power | ||
| 電源輸入 Power Input | 9~36V DC | |
| 環境 Environment | ||
| 操作溫度 Operation Temp. | -10℃ ~ 60℃ (SSD)，0℃ ~ 40℃ (HDD) | |
| 存儲溫度 Storage Temp. | -40℃ ~ 70℃ | |
| 濕度 Relative Humidity | 5% ~ 95%, 非凝結狀態 Non-condensing | |
| 隨機振動 Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation | |
| 正弦振動 Sine Vibration | 5~500Hz, 2G Non-operation | |
| 機械沖擊 Shock | 10g 11ms operation, 30g 11ms Non-operation | |
| 認證 Certification | ||
| 安規認證 Safety Certification | CCC , CE , FCC | |
