規格 Specification | ||
系統 System | ||
處理器 Processor | Intel® 6th/7th Gen. Core™ i3/i5/i7, Pentium®, Celeron® processor, LGA1151 Socket | |
芯片 Chipset | Intel® H110 Chipset | |
內存 Memory | Support DDR4-2400MHz, 2 x UDIMM, up to 32GB | |
圖形 Graphics | Intel® HD Graphics, dual display | |
存儲 Storage | 3 x SATA 3.0, 1 x mSATA | |
操作系統 OS | Windows 7/8/10, Linux | |

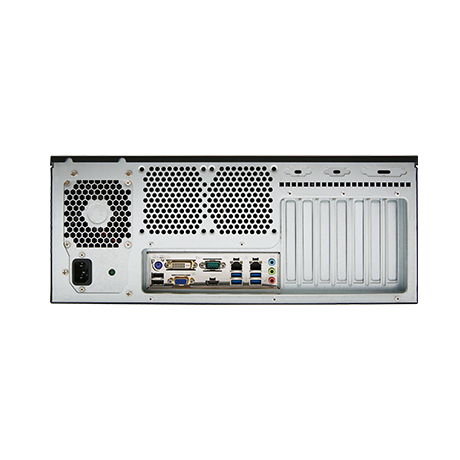

外部接口 External I/O | ||
網口 Ethernet | 1 x RJ45 Intel® I211AT + 1 x RJ45 Intel® I219-LM GbE(10/100/1000 Mbps) | |
顯示 Video | 1 x VGA:max resolution up to 1920 x 1200 1 x HDMI:max resolution up to 4096 x 2160 1 x DVI: max resolution up to 1920 x 1200 | |
音頻 Audio | 1 x Line-in, 1 x Line-out, 1 x Mic-in | |
串口 COM | 1 x RS232 | |
USB | 4 x USB 3.0, 4 x USB2.0 | |
PS/2 | 1 x PS/2 (Keyboard and Mouse Supported) | |
按鈕 Button | 1 x Power Button, 1 x Reset Button | |
指示燈 LED | 1 x Power LED, 1 x HDD LED | |
內部接口 Internal I/O | ||
擴展接口 Expansion | 1 x PCIe X16, 1 x PCIe X4, 1 x PCIe X1, 4 x PCI, 1 x SIM Card Slot 2 x Mini-PCIe(1 x Wifi/3G/4G Supported, 1 x mSATA Supported) | |
USB | 1 x USB 2.0 pin header | |
串口 COM | 3 x RS232, 2 x RS485/232 | |
SATA | 3 x SATA 3.0 | |
GPIO | 1 x 8-bit GPIO | |
LPT | 1 x LPT pin header | |
PS/2 | 1 x PS/2 pin header (keyboard or mouse) | |
風扇 FAN | 3 x CPU Fan Header | |
環境 Environmental | ||
操作溫度 OperatingTemp. | 0℃ ~ 40℃ | |
存儲溫度 Storage Temp. | -20℃ ~ 60℃ | |
濕度 Relative Humidity | 5% ~ 95%, 非凝結狀態Non-condensing | |
隨機振動 Random Vibration | 5~500Hz, 1Grms (HDD)operation | |
正弦振動 Sine Vibration | 5~500Hz, 2G Non-operation | |
機械沖擊 Shock | 10G@ 11ms operation | |
電源 Power | ||
電源輸入 Power Input | 100~240V(AC) | |
電源功耗 Power Watt | 300W | |
機構 Mechanical | ||
外觀 Housing | SGCC | |
尺寸 Dimension | 455(L) x 427(W) x 178(H)mm | |
重量 Weight | 15kg(約) | |
安裝方式 Mounting | 機柜式 (Rack-Mount) | |
認證 Certification | ||
安規認證 Safety Certification | CCC |
注明:
Mini-PCIe slot 默認支持 3G and WIFI,MSATA1 slot 默認支持 mSATA。
